Sony Measuring Unit
DT12N/P

• Accuracy:  6 micron
• Durability:  500,000,000 strokes or more
• Display Unit:  LT10 Series
• Resolution:  1 micron
• Dimensions:  DIN standard 72 x 72 mm

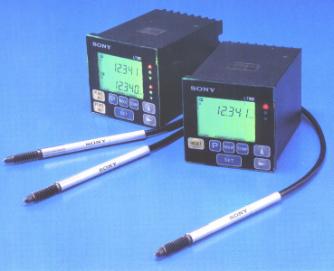

Sony Display
LT20 Series

• Compact, lightweight easy-to-mount display
• Available in two types: BCD and RS-232C I/O
• Compact and lightweight: DIN standard (72 x 72 mm)
• Comparison funtions
• 3-point comparison
• 4 sets of comparison points can be stored
• Easy to read LED and GO/NO GO decision output via open collector
• Reset/Preset
• Alarm: exceeded max. response speed, disconnected gauges, etc.
• Data storage: resolution, counting direction, comparison
reference points, preset value, modes, BCD polarity (B type) and
communicaiton parameter (C type)
• 2-channel addition (2-channel models only)
• Applications
Sorting of rejected assemblies, data management

Multipoint Measuring System
LT100
Gauge board LZ60-P

• Expansion board LZ60-B/C
• Compact design (panel mount)
• Can be connected to up to 10 channels (with 5 gauge boards)
• Easy to see LCD (2-channel display)
• Gauge board LZ60-P connectable to 2 channels
• Current value, max./min. values, peak-to-peak value
• GO/NO GO decision
• Data storage
• ADD/SUB calculation
• Counting direction switchable
• Reset/Preset/Recall
• Expansion I/O board LZ60-B/C available as option

Digital Indicator
U Series

• High-accuracy, easy-to-use digital indicator
• High accuracy:
   2 micron (U12A/U30A)
   3 micron (U60A)
• Provided with RS-232C interface for connection to the computer
• Comes in measuring ranges up to 60 mm
• Can measure max./min., p-to-p value all at one stroke
• Battery-operation using optional battery pack
• Workpiece damage prevented by the damper mechanism in the spindle
• Applications:
   Inspection measuring of workpieces and parts; data processing
